PG 1000 Cutting Tool Inspection System
We are authorised distrubutors of PG 1000 Cutting Tool Inspection Systems. Listed below are the 3 series of PG1000 Inspection systems available. Please contact us to procure this very useful Inspection System.

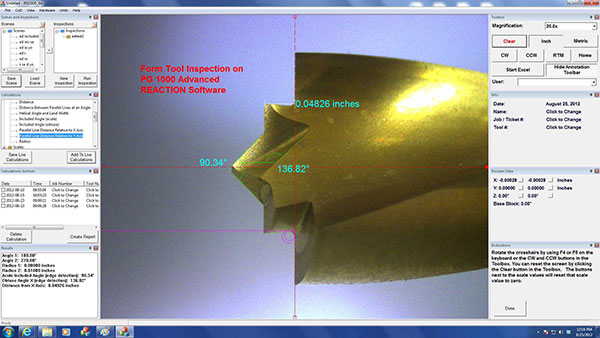

400 Advanced REACTION
Main Features:

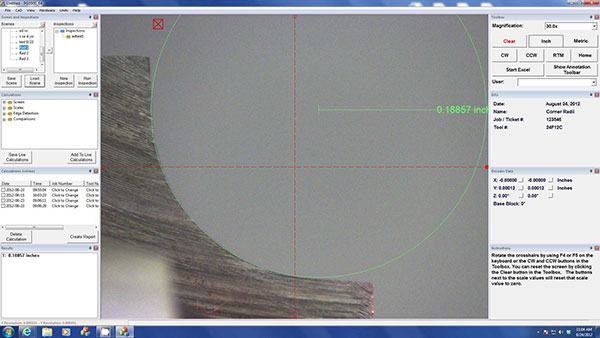

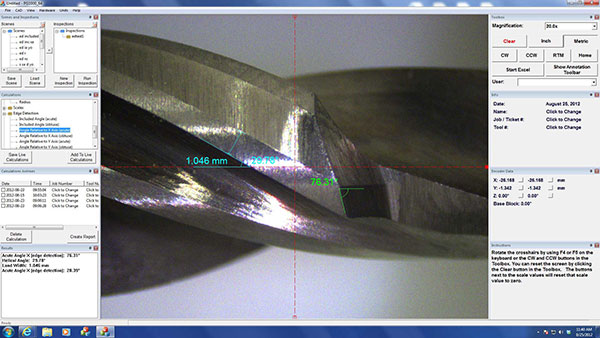

- Advanced REACTION1 Software
- 1.3 Mega Pixel USB CCD camera
- Low light imaging requires minimum light and reduces hot spots
- 12x Microscope, magnifications from 12.5X to 145X
- Do multiple screen scale, edge detection and comparisons in different colors over a single image
- Magnifications automatically synchronized to PC
- Base block and focus encoder
- Focus indication
- User Macros

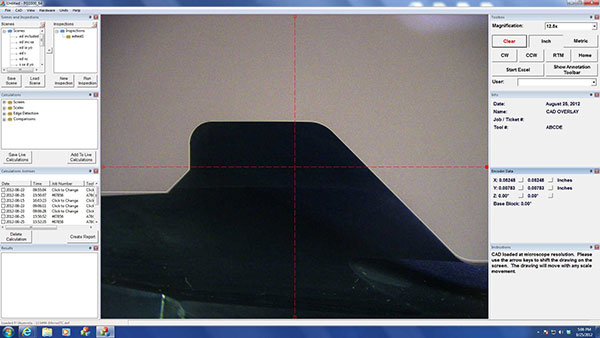

- CAD overlay software synchronized to scale movement
- Automatic screen calibration with magnification change stabilization
- Segmented scale calibration
- Euro-Tech PGEB6 6 Channel USB Encoder Interface
- Free upgrade software downloads as hardware permits
Technical Specification:
| Microscope | *00484-1A 12X optical system |
| Magnification | 12.5x, 20x, 30x, 40x, 50x, 60x, 70x, 80x, 90x, 110x, 120x, 125x, 130x, and 145x2 |
| Field of View | 12.5x = 25 mm, 20x = 16.7 mm, 30x = 11.6 mm, 40x = 8 mm, 50x = 6.6 mm, 60x = 5.4 mm, 70x = 4.55 mm, 80x = 4.0 mm, 90x =3.5 mm, 110 = 3.0 mm, 120x = 2.8 mm, 125X = 2.6 mm, 130x = 2.5 mm, 145x = 2.3 mm |
| Camera | *1.3 mega pixel ½” format USB CCD color camera |
| Computer | *Dell mini-tower or desk top, i3 or higher quad core processor 3 GB RAM 250 GB hard drive. Digital DVI video interface |
| Monitor | 20″ to 22″, 1920 x 1080 resolution flat panel |
| Operating Systems | *Windows 7, 32 or 64 bit |
| Scales | *Fagor |
| Light | Variable Intensity LED work light |
| Language | English |
| Software | All software documentation is electronic and available for download from the PG1000 web site |
| Screen Resolutions |
Low = .020 mm (.00078”) High = .0017 mm (.000078”) |
| Repeatability | .005 mm (.0002”) |
| Warranty | 1 year on all parts supplied by Euro-Tech at the time of purchase as an upgrade or full system |
| General Information |
Dimensions: 24″ wide x 19″ deep x 18″ high Weight: 140 lbs Power: 110 volts default; 220 optional |
*Euro Tech reserves the right to change microscope, digital readout, scale manufacturers and camera Manufacturers, computer manufacturers, operating systems and computer components as needed

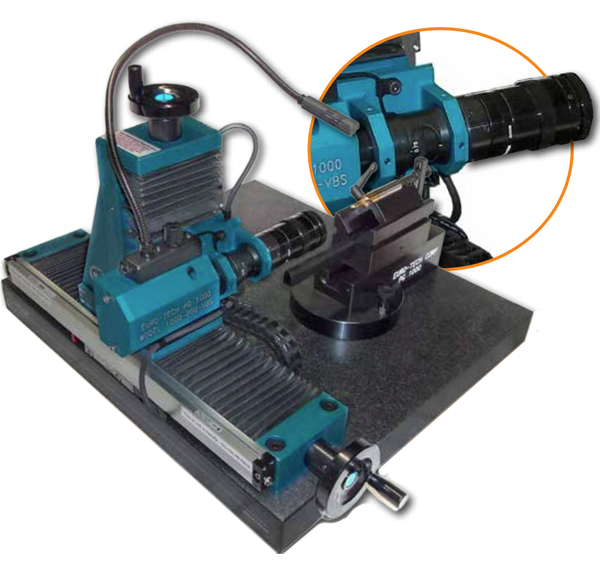

200 Basic REACTION
Main Features:

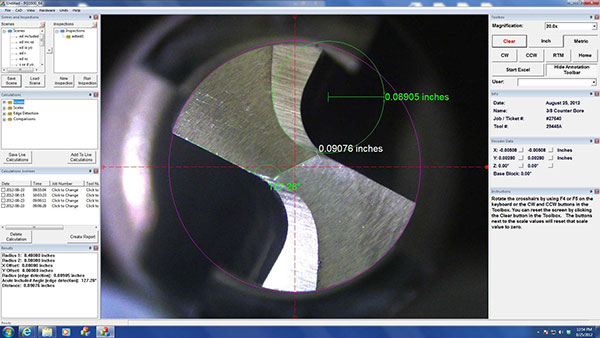

- Basic REACTION1 Software
- 1.3 Mega Pixel USB CCD camera
- Low light imaging requires minimum light and reduceshot spots
- 6X Microscope, magnifications from 15X to 95X
- Focus indication for edge detection calculation
- CAD overlay software
- Automatic screen calibration
- Segmented scale calibration
- Euro-Tech PGEB6 6 channel USB Encoder Interface
- Free upgrade software downloads as hardware permits
Technical Specification:
| Microscope | *00464-1A 6X optical system |
| Magnification | 15x, 20x, 30x, 40x, 55x, 75x, 95x |
| Field of View | 15x = 22 mm, 20x = 16.5 mm, 30x = 11.0 mm, 40x = 8 mm, 55x = 6.5 mm, 75x = 4.2 mm, 95x =3.5 mm |
| Camera | *1.3 mega pixel ½″ format USB CCD color camera |
| Computer | *Dell mini-tower or desk top, i3 or higher quad core processor 3 GB RAM 250 GB hard drive. Digital DVI video interface |
| Monitor | 20″ to 22″, 1920 x 1080 resolution flat panel |
| Operating Systems | *Windows 7, 32 or 64 bit |
| Scales | *Fagor |
| Light | Variable Intensity LED work light |
| Language | English |
| Software | All software documentation is electronic and available for download from the PG1000 web site |
| Screen Resolutions |
Low = .020 mm (.00078") High = .003 mm (.00012") |
| Repeatability | .010 mm (.0008″) |
| General Information |
Dimensions: 24″ wide x 19″ deep x 18″ high Weight: 140 lbs Power: 110 volts default; 220 optional |
*Euro Tech reserves the right to change microscope, digital readout, scale manufacturers and camera Manufacturers, computer manufacturers, operating systems and computer components as needed

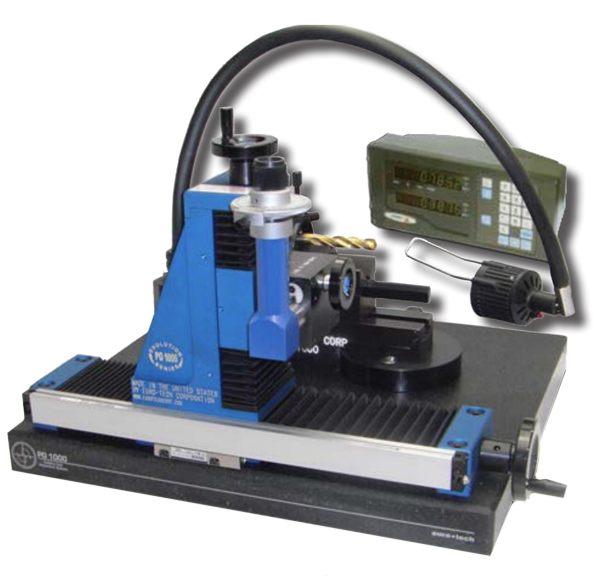

Model 1000-200-E
Main Features:
- Competitive cost
- Robust, shop floor durable
- High quality Swiss Centering microscope with protractor for angle measurement
- Image viewed under magnification as corrected image
- 10x and 25x standard magnification; 5x, 50x and 100x optional
- Uses same base and slides as software system
- Can be upgraded to basic software system
- Designed exclusively for cutting tool inspection
- Large selection of workholding accessories
Technical Specification:
| Microscope | *Isoma 157 Centering microscope with protractor for angle measurement. |
| Measurement Range | 360 Degrees |
| Accuracy | 10' |
| Magnification | 10x and 25x standard (Optional 5x, 50x and 100x) |
| Field of View |
10x lens 15 mm (.590”) 25x lens 6 mm (.236”) |
| Scales | *Fagor |
| Digital Readout | * Fagor Innova 20iM DRO |
| Features | Inch/mm conversion, presets and memory |
| Resolution | .00005” standard ( .000010” Optional) |
| Voltage |
110/V, 60 Hz 220/V, 50 Hz (Optional) |
*Euro Tech reserves the right to change microscope, digital readout, scale manufacturers and camera Manufacturers, computer manufacturers, operating systems and computer components as needed
PG Accessories

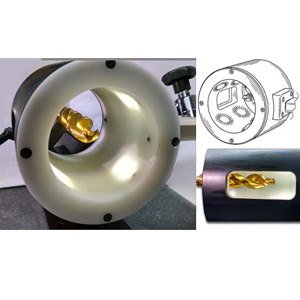

Illumination Tube

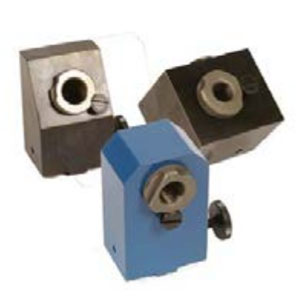

Ball Bushing Chucks

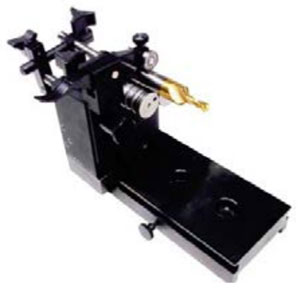

Concentricity Fixture

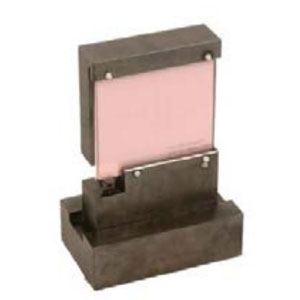

Standard Reticle

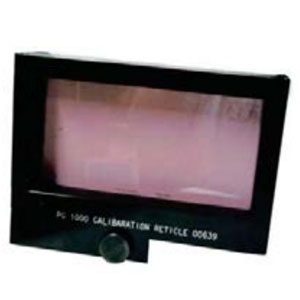

Segmented Calibration Reticle

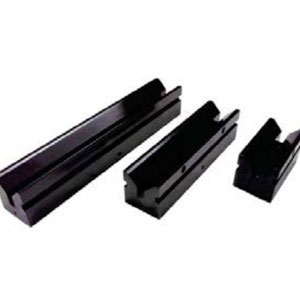

V Blocks

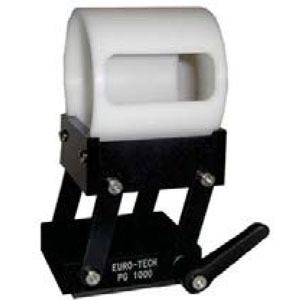

Light Diffuser

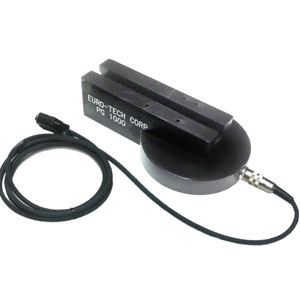

Base Block w/Encoder

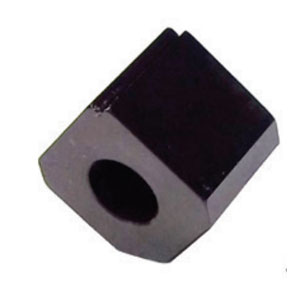

Mini V Block

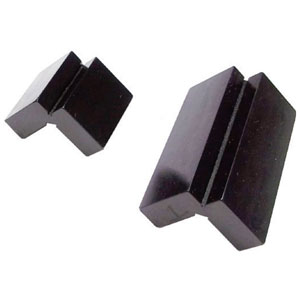

V Block Inserts

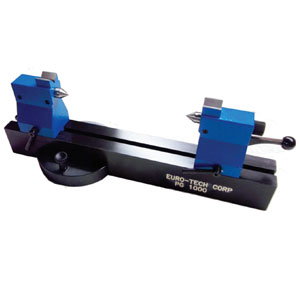

Large Center Fixture

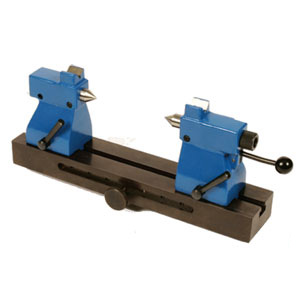

Mini Center Fixture

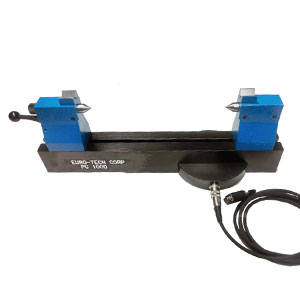

Large Center Fixture with cable

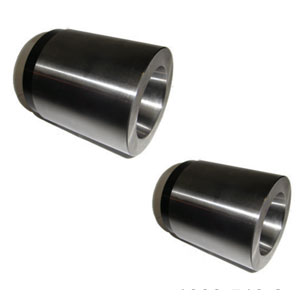

Tapers

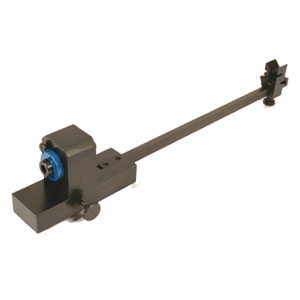

Gun Drill Fixture
